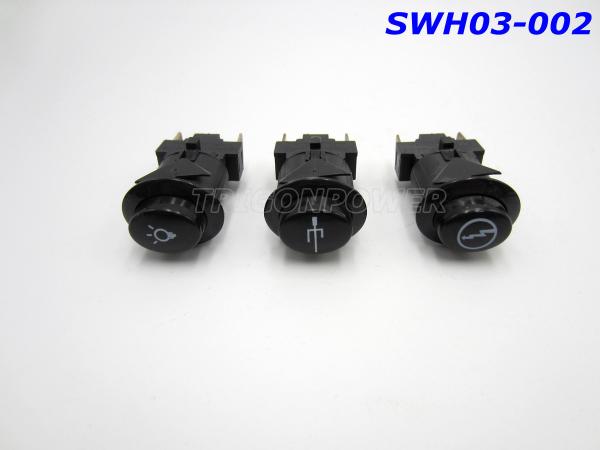

Reliably Oven Control Switch FASTON 6.3 X 0.8 Miniature Push Button Switch

Name: Reliably Oven Control Switch FASTON 63 X 08 Miniature Push Button Switch
Brand: TRIGONPOWER
Price: 1 USD

Brand Name : TRIGONPOWER

Model Number : SWH03-002-2

Certification : CE,RoHs

Place of Origin : P.R.CHINA

MOQ : 5000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 300K SETS / MONTH

Delivery Time : 45 DAYS AFTER ORDER CONFIRMED

Packaging Details : CARTON / PALLET

TYPE : on off button switch

APPERANCE STYLE : BUTTON

CODE : SWH03-002-2

INPUT STYLE : CAP

OUTPUT STYLE : TERMINAL PIN, FASTON 6.3 X 0.8

OUTPUT QUANTITY : 2

WORKING FREQUENCY : 50 / 60 HZ

WORKING TEMP. : T150 max

HOUSING MATERIAL : NYLON (PA66)

GLOW WIRE TEST : GWT 850 & GWIT 775 (IEC60335-1 PART 30.2)

FLAME CLASS : UL-94-V0

Contact Now

Description:

The electrical conductor materials are all good quality material, such as the silver connectors. The good conductor materials could reduce the circuit loss and circuit heat to increase the working life of the button switch.

Specification:

TYPE	OVEN CONTROL SWITHC
APPERANCE STYLE	BUTTON
PRODUCT CODE	SWH03-002-2
INPUT STYLE	CAP
OUTPUT STYLE	TERMINAL PIN, FASTON 6.3 X 0.8
OUTPUT QUANTITY	2
ELECTRIC PARAMETERS	10A/AC250V



WORKING FREQUENCY	50 / 60 HZ
WORKING TEMP.	T150 max
HOUSING MATERIAL	NYLON (PA66)
GLOW WIRE TEST	GWT 850 & GWIT 775 (IEC60335-1 PART 30.2)
FLAME CLASS	UL-94-V0

Applications:

1. Freestanding Oven

2. Built-in Oven

3. Mini Oven

4. Microwave Oven

5. Gas Cooker

6. Other Home Appliances

Working stably under high temperature

The raw materials of the parts for switch all have good high temperature resistance properties. So the switch could work stably under the high temperature, at least 120 degrees centigrade.

COMPONENTS	RAW MATERIAL	TEMP. RESISTANCE	NOTE
Housing, coil frame	nylon (PA66)	>120 ℃
contacts	silver	>900 ℃ (Teflon)
terminal	Galvanized steel	>1500 ℃

Good safety properties

1) Good high voltage resistance.

All of the shielding parts have good insulation properties.

COMPONENTS	RAW MATERIAL	VOLTAGE. RESISTANCE
Housing	nylon (PA66)	> AC 600V

2) Good heat and fire resistance.

All of the non-metallic material could pass the heat and fire resistance test of GWT 750 and GWIT 775.

Be convenient for cleaning and maintenance

Most of our product with seal shell and all of products with good surface quality surface, so you could easily clean and maintenance these products.
